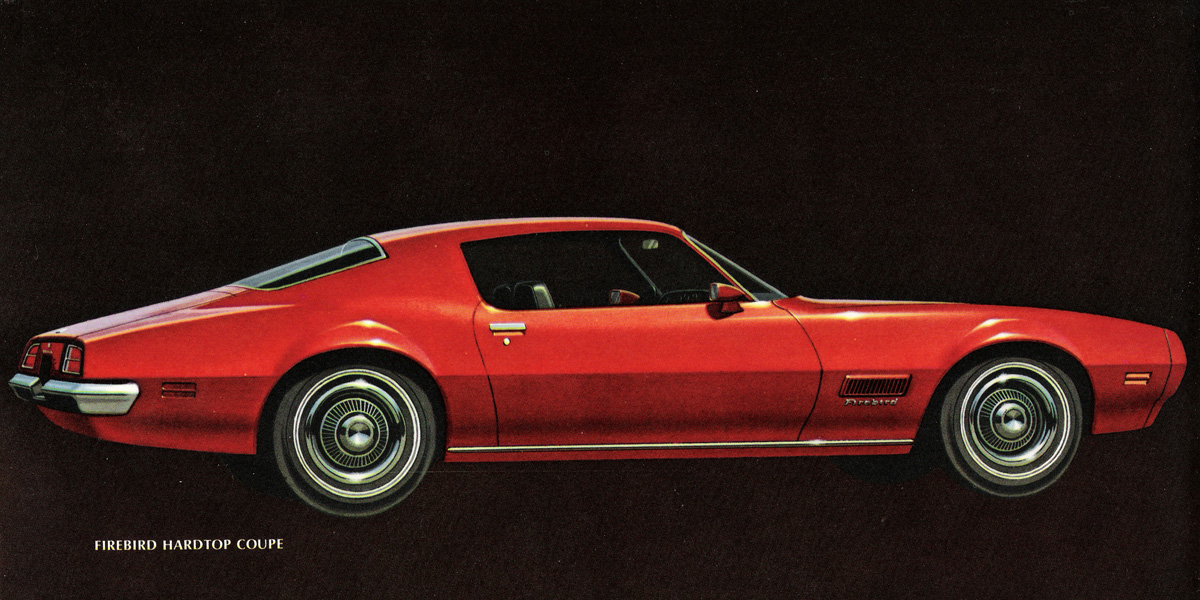

Base Firebird 2387

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Other Interior Features
Two spoke, shallow dish steering wheel. Black
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Bright Grille Moldings with PONTIAC Emblem.
350 emblem in Front Grille. If the L65 400 is ordered then
Firebird>/i> Nameplate on front fender
Simulated Engine Compartment Air Extractor Vent on Lower Fender
Chrome Left Hand Mirror
D35 Dual Body-Color Sport-Type Outside Rear View Mirrors Available
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Single Horn
Dual Horns Available (U05)
Standard Engine
L22 250 cid (4.1 liter) Overhead Valve 6 Cyl, 1bbl (L22)
Optional Engine
L30 350 cid (5.7 liter) V-8 2bbl (L30)
Standard Transmission
M12 3 Speed Manual, Column Shift
Optional Transmission
M12 3 Speed Manual, Floor Shift when L30 350 V8 ordered
M13 Heavy Duty 3 speed Manual Floor Shift
M20 4 Speed Manual Transmission with L30 350 V8
M35 2-Speed Automatic Transmission
M38 3-Speed Turbo Hydra-matic Transmission
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.938 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.08:1 with L22 6 Cylinder
3.42:1 with 350 V8 (L30) and Manual Transmission
2.73: 1 with 350 V8 (L30) and Automatic Transmission: 2.73:1
Optional Axle Ratio
G90 Performance Axle
3.08:1 with 350 V8 (L30) and Automatic Transmission
Wheels/Hubcaps
Standard Hubcaps
14" X 6" with 6 cyl
14" x 7" with V8
Available Wheels/Hubcaps
Custom Wheel Covers (P02)
Rally II Wheels including Trim Rings (N98) 14" x 7"
Honeycomb Wheels (P05) 14" x 7"
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
E78-14 Blackwall (HF)
Available Tires
F70-14 Blackwall Tires (PY6)
F78 X 14 Whitewall Tires (PX6)
E78 X 14 WhitewallBlackwall (PL3)
F70 x 14 Raised White Letter Tires (PL4)

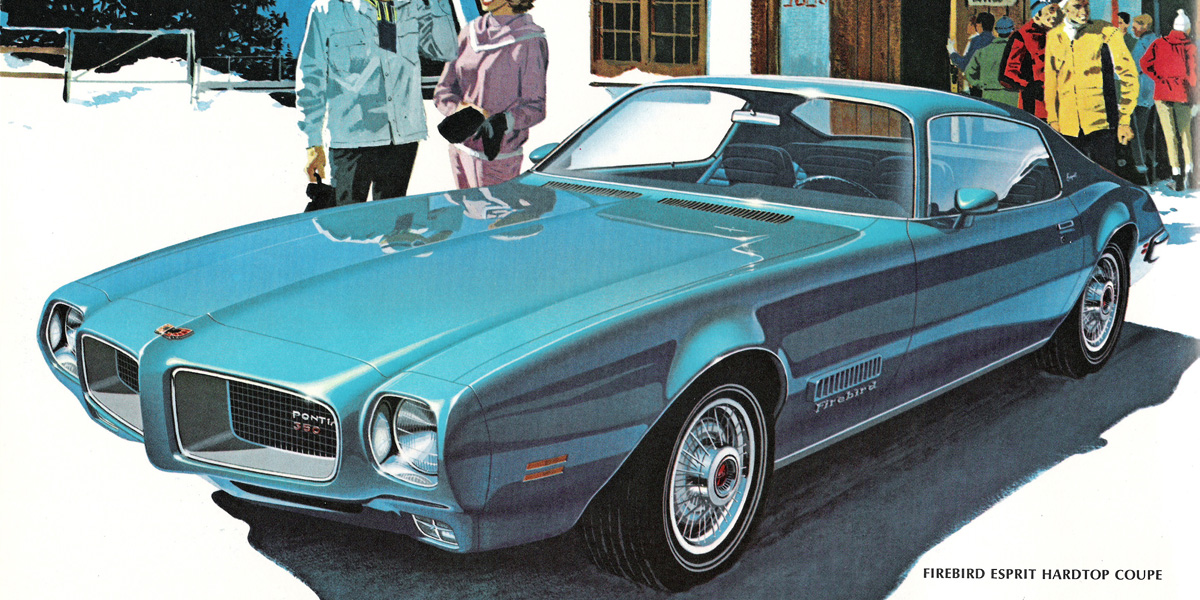

Firebird Esprit 2487

Interior Features
Custom Interior (W54)
Custom Vinyl Strato Bucket Seats with integrated headrests
Upgraded door panels with pull strap and map pockets below.
Instrument Panel Assist Strap
Rear Quarter Ashtrays
Trunk Mat (B42)
Includes Exterior Door handle insert in body color
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Bright Grille Moldings with PONTIAC Emblem.
350 emblem on Front Fender when equipped with L30 350 cid engine option, or 400 with the L65 engine.
Firebird Emblem on Front Bumper
Esprit Nameplate on Roof Sail Panel
Firebird>/i> Nameplate on front fender
Simulated Engine Compartment Air Extractor Vent on Lower Fender
Right and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
Body Color Inserts in Outside Door Handles Part of Custom Trim group (W54))
Firebird Emblem on Trunk Lid
Recessed Windshield Wipers (C24)
Wide Rocker Panel Moldings
Chrome Roof Drip with Scalp Moldings (B80)
Hood Rear Edge and Belt Reveal Moldings
Front and Rear Wheel Opening Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
L30 350 cid (5.7 liter) V-8 2bbl (L30)
Optional Engine
L65 400 cid (6.6 liter) V-8 2bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift
Optional Transmission
M13 Heavy Duty 3 speed Manual Floor Shift
M20 4 Speed Manual Transmission
M35 2-Speed Automatic Transmission with L30 350 V8 only
M38 3-Speed Turbo Hydra-matic Transmission
M40 Turbo Hydramatic with 400 V8 (L65)
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
0.938 inch Front Stabilizer bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.42:1 with 350 V8 (L30) and Manual Transmission
2.73: 1 with Automatic Transmission
Optional Axle Ratio
G90 Performance Axle
3.08:1 with Automatic Transmission
Wheels/Hubcaps
Standard Hubcaps with Trim Rings
14" X 7"
Available Wheels/Hubcaps
Custom Wheel Covers (P02)
Rally II Wheels including Trim Rings (N98) 14" x 7"
Honeycomb Wheels (P05) 14" x 7"
Standard Tires
E78-14 Blackwall (HF)
Available Tires
F70-14 Blackwall Tires (PY6)
F78 X 14 Whitewall Tires (PX6)
E78 X 14 WhitewallBlackwall (PL3)
F70 x 14 Raised White Letter Tires (PL4)

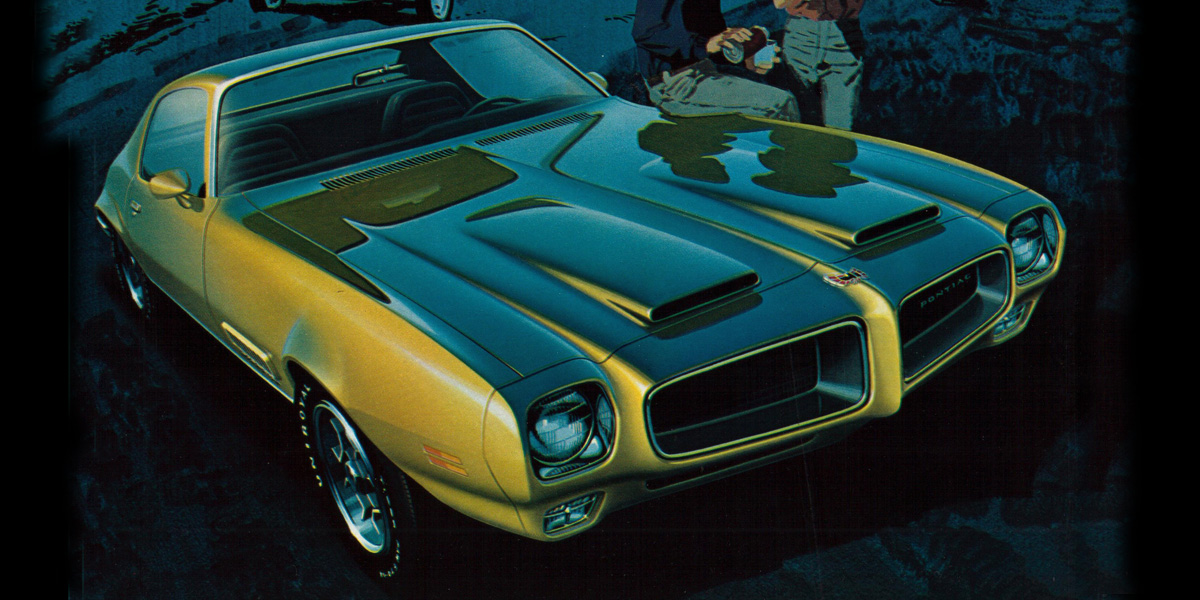

Formula 2687

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Custom Interior (W54) available
Other Interior Features
Custom Cushion Three Spoke Steering Wheel (N30) in Interior Matching Color
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Wood Grain Vinyl Instrument Panel Face
160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Black Textured Grill with Bright Grille Moldings with PONTIAC Emblem.
Firebird Emblem on Front Bumper
Fiberglass Hood with Simulated Dual Snorkel Intakes
Firebird>/i> Nameplate on front fender
FORMULA 350, FORMULA 400 or FORMULA 455 Emblems on Fenders matching the engine size ordered,
Simulated Engine Compartment Air Extractor Vent on Lower Fender
Right and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
Firebird Emblem on Trunk Lid (except with Spoiler)
Rear Air Spoiler (D80) Optional
Exposed Windshield Wipers
Recessed Wipers Available (C24)
Narrow Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
L30 350 cid (5.7 liter) V-8 2bbl (L30)
Optional Engine
L78 400 cid (6.6 liter) 4bbl
L75 455 cid (7.5 liter) V-8, 4bbl
LS5 455 cid (7.5 liter) V-8 HO, 4bbl
Standard Transmission
M12 3 Speed Manual, Floor Shift
Optional Transmission
M13 Heavy Duty 3 speed Manual Floor Shift
M20 4 Speed Manual Transmission - not available with 455 V8
M22 4 Speed Manual (Close Ratio) Transmission
M25 2-Speed Automatic Transmission with L30 350 V8 only
M38 3-Speed Turbo Hydra-matic Transmission with L30 350 V8 only
M40 3-Speed Turbo Hydramatic Transmission available with all 400 and 455 V8s.
Steering
Manual Steering
Variable Ratio Power Steering Available (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
0.938 inch Front Stabilizer bar with L30 350 cid V8. 1.125 inch with all others.
0.620 inch Rear Stabilizer Bar
Brakes
Manual Front Disc Brakes-Rear Drum Brakes
Wonder Touch Power Brakes available (J50)
Differential
Solid Rear Axle
G80 Safe T Track Differential Available
Axle Ratios
3.42:1 with 350 V8 (L30) or 400 V8 (L78) and 3 Speed Manual Transmission or 4 Speed Close Ration Manual Transmission
2.73: 1 with 350 V8 and Automatic Transmission
3.73:1 with 4 Speed Close Ration (M21) Manual Transmission (n/a with C60 Air Conditioning)
3.08:1 with 400 V8 (L78) and 3 Speed Turbo Hydramatic (M40) Transmission
3.42: 1 with 455 V8 (L75 or LS5) and 3 Speed Turbo Hydramatic (M40) and without C60 Air Conditioning
3.08:1 with 455 V8 (L75 or LS5) and 3 Speed Turbo Hydramatic (M40) and with C60 Air Conditioning
3.42:1 with 455 HO (LS5) and Manual Transmission
Optional Axle Ratio
G90 Performance Axle
3.08:1 with 350 V8 and Automatic Transmission
3.42:1 with 400 V8 (L78) and 3 Speed Turbo Hydramatic (M40) Transmission
3.73:1 with 455 HO V8 (LS5) and 3 Speed Turbo Hydramatic (M40) and without C60 Air Conditioning
Wheels/Hubcaps
Standard Hubcaps
14" X 7"
Available Wheels/Hubcaps
Custom Wheel Covers (P02)
Rally II Wheels including Trim Rings (N98) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered or with PM7 F60 x 15 RWL Tires))
Honeycomb Wheels (P05) 14" x 7" (15" x 7" When the Y99 Formula Handling Package was ordered)
Wheel Trim Rings (P06) with Standard Hubcap only
Standard Tires
F70-14 Blackwall (PY6)
Available Tires
F70 x 14 Raised White Letter Tires (PL4)
F60 X 15 Raised White Letter Tires with 15 inch Rally II Rims (PM7)

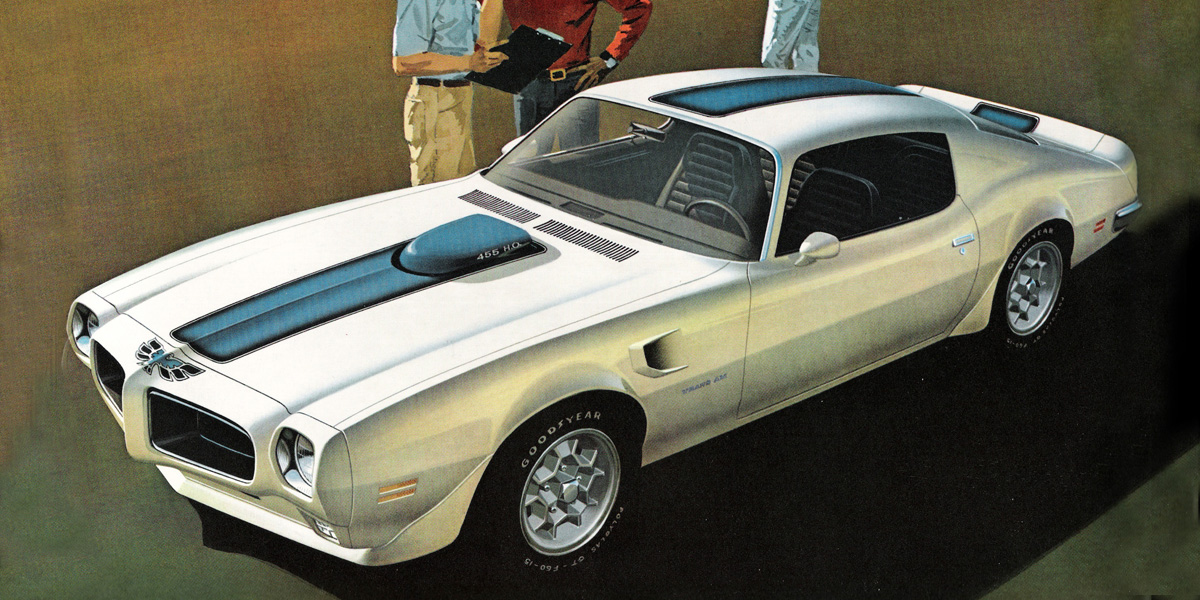

Trans Am 2887

Interior Features
Standard Interior
Vinyl Strato Bucket Seats with integrated headrest
Standard door panels with map pockets
Custom Interior (W54) available
Other Interior Features
Formula Steering Wheel Black (NK3)
Nylon Blend Loop-pile Carpeting
Bow type headliner. Perforated
Seat Belts with Pushbutton Buckles for all Passenger Positions. Separate Shoulder Belts with Push button buckles.
Black Seat Belts (color keyed available AK1 and AK2)
Floor Mounted Dimmer Switch
Engine-turned Instrument Panel Plate with Black Trim Bezels (early Trans Ams may have used chrome as in 70)
Rally Guages, Clock & Instrument Panel Tachometer (U30) and 160 MPH Speedometer Graduated in Miles Per Hour
Console (D55) Available
Upper Level Ventilation
Exterior Features
Endura Front Bumper
Black Textured Grill with Bright Grille Moldings (no emblem)
Special Bird Decal on Front Bumper
Front Center Air Dam and Rear Wheel Opening Air Spoiler
Shaker Hood with Special Rear Facing Cold Air Intake (Throttle Controlled)
Trans Am Decal on Front Fender
Functional Front Fender Air Extractors
Right and Left-hand Body-colored Outside Mirrors - Left-hand Remote Controlled (D35)
Single Stripes on Hood, Roof, and Rear Deck Lid
Rear Spoiler with TRANS AM decal
Recessed Windshield Wipers (C24)
No Rocker Panel Moldings
Bright Windshield and Rear Window Moldings
Bright Headlamp Bezels
Chrome Exhaust Tips
Windshield Radio Antenna
Other
Dual Horns (U05)
Standard Engine
LS5 455 cid (7.5 liter) V-8 HO, 4bbl
Standard Transmission
M22 4 Speed Manual Close Ratio Transmission
Optional Transmission
M40 3-Speed Turbo Hydramatic Transmission
Steering
Variable-Ratio Power Steering with quick gearing (N41)
Suspension
Independent Front Suspension with upper and lower control arms, coil springs and tubular shocks. Rear Hotchkiss solid Axle with multi-leaf springs
Heavy Duty Front Coil Springs
Heavy Duty Firm Control Tubular Shocks
1.250 inch Front Stabilizer Bar
0.875 inch (7/8) Rear Stabilizer Bar
Brakes
Power Front Disc Brakes-Rear Drum Brakes (J50)
Differential
Safe-T-Track Differential (G80)
Axle Ratios
3.42:1 (Manual Transmission)
3.42:1 (Automatic Transmission)
Optional Axle Ratio
G90 Performance Axle
3.73:1 with 3 Speed Turbo Hydramatic (M40) and with C60 Air Conditioning
Wheels/Hubcaps
Rally II Wheels including Trim Rings (N98)
15" X 7"
Available Wheels/Hubcaps
Honeycomb Wheels (P05) 15 inch
Standard Tires
F60 X 15 Raised White Letter with 15 inch Rally II Rims (PM7)
Available Tires
F60 X 15 Raised White Letter Tires Tires with 15 inch Honeycomb Rims (PM7)
Examples shown on this page consist of scanned images or reproduction artwork that can not be faithfully reproduced on a computer screen. Illustrations are for example only. Consult with your vendors offerring reproduction parts for their historical accuracy.
